Yakıt Sensörü

Teknik Özellikler

Measuring principle: capacitive
Measuring range: 0-180 ... 1000 mm, cuttable to size
Operating medium: Fuel qualtiy diesel oil
Output signal Exclusive data protocol
Measurement precision: ~98%(this accuracy is guaranteed only at full refueling!)
Supply voltage: +9V ... +36V DC
Current consumption: < 3 mA
Cables: 7m, 3x0,14,in cable protective tube
Storing and operating temperature range: -20 C° ... +60 C°
Protection: IP68
Material: Stainless steel

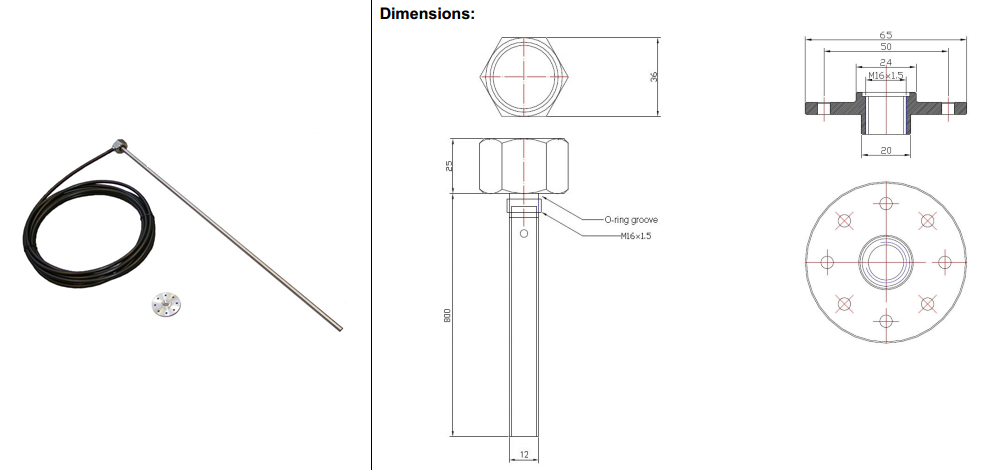

Dimensions: LT36x25 hexagonal casing
connecting thread:M16 x 1,5
probe:\varnothing \!\, 12 x 180...1000
Gross weight: 1000g (packed)
